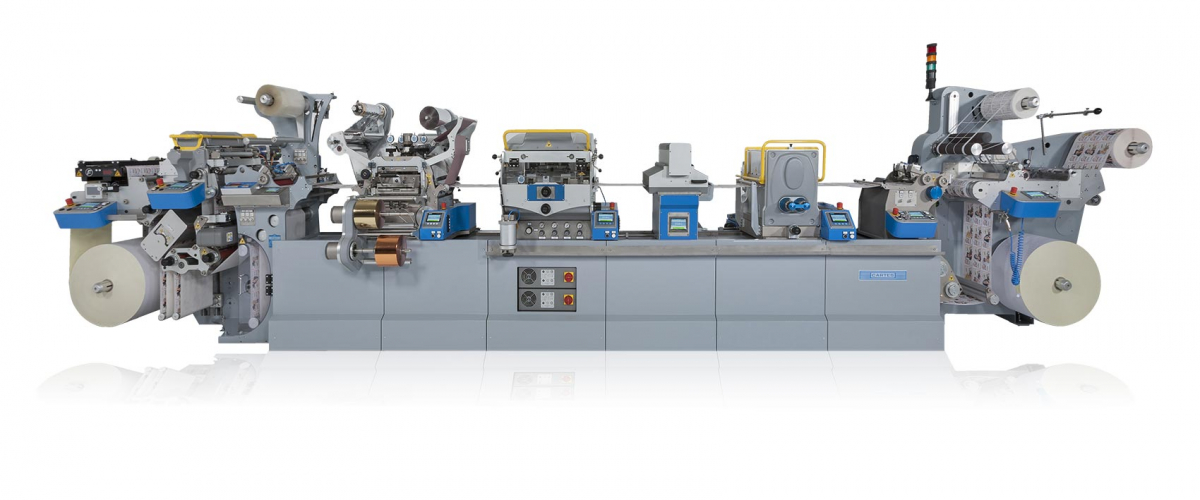

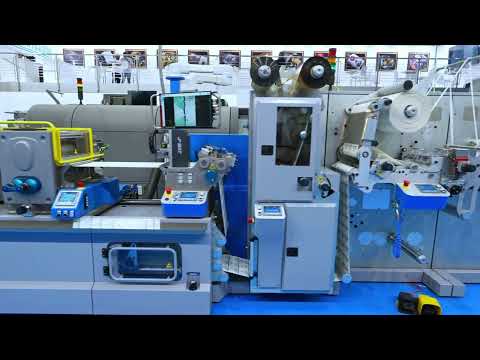

Label printing and finishing machines in web width 360 mm
The technologies applied to the GT SERIES machines make them one of the best options on the market, not only for the finishing, but also for fulfilling complete high value labels with maximum economy.
Configurable with the following units:
- Silk-screen printing
- Digital finishing (Jet D-Screen)
- Hot stamping
- Embossing
- Flexo printing and varnishing
- Flat bed die-cutting
- Semi-rotary die-cutting (CARTES PATENTED)
- Laser die-cutting (CARTES PATENTED)
CARTES has actually developed a unique and innovative technology that allows to obtain the best results in
terms of accuracy and productivity, both for short and long runs.
In addition to the strength, the quality of materials and high precision at every speed, the GT Series offers to
the label market new and exclusive features such as:
- High Speed and granted accuracy
- Energy saving technology
- Extreme modularity concept
Applications:
- Flat bed silk-screen printing with high speed, accuracy and the possibility of high-build effect.
- Braille printing and metallic doming (3D)
- Digital finishing for creating high build effects, metal doming, high build varnish and Braille effects
- Hot stamping and embossing, also simultaneously
- Hologram application
- Cut-off window system (DEPASTILLAGE)
- Label application in register (LABELS on LABELS) for creating multilevel effects with different materials
- Protective flexo coating
- Flexo printing
- Selfwound lamination system
- UV lamination system
- Semi-rotary die-cutting

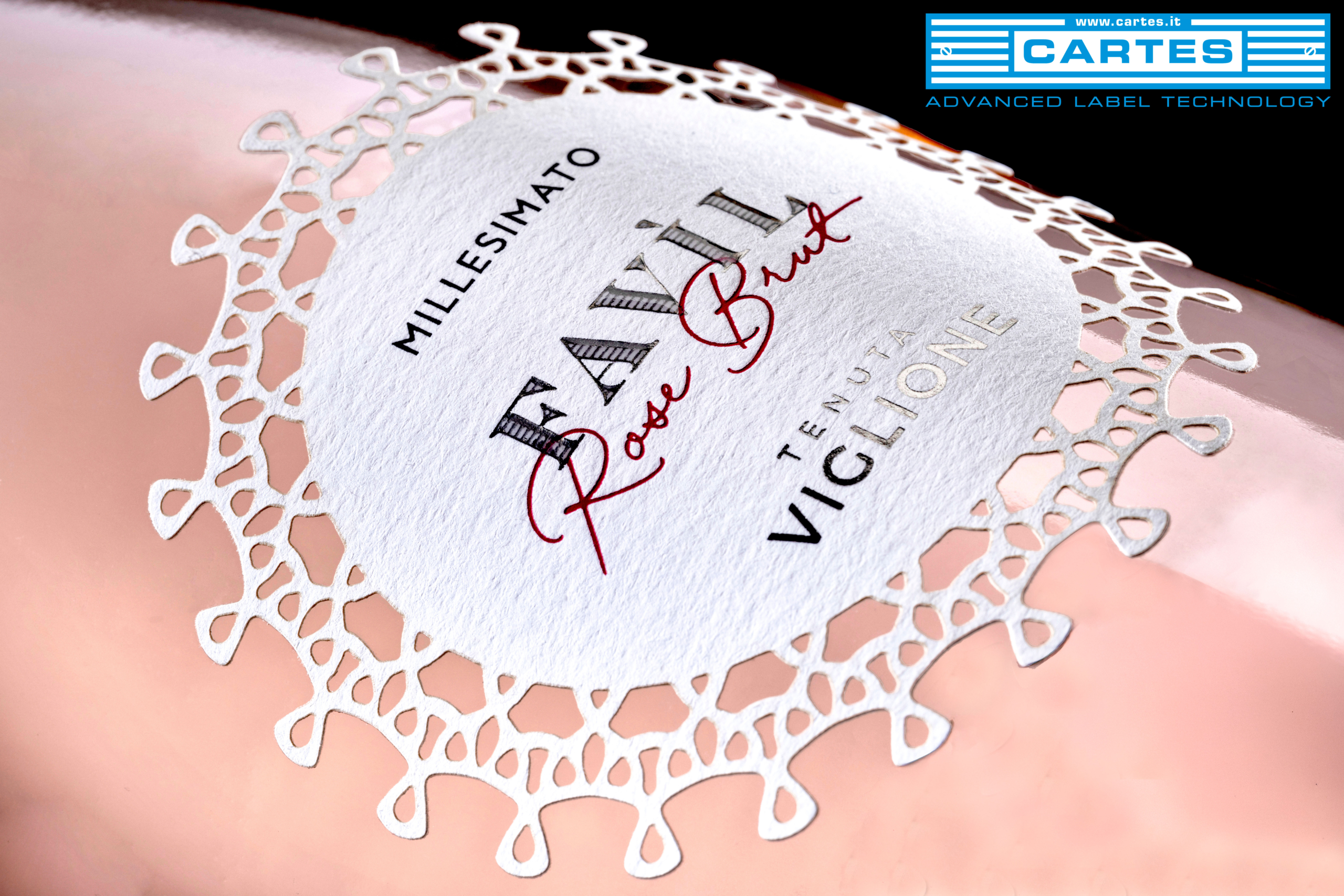

- Cutting of small / large print runs and special processing by the laser unit
| Technical data | |||
|---|---|---|---|
| General | Max web width Min web width Max unwinding/rewinding roll diameter Maximum matrix roll diameter Motorized stripping system | 360 mm - (14 in) 100 mm - (4 in) 600 mm - (23.6 in) or optional 800 mm - (31.5 in) 650 mm - (25.6 in) included optional | |
| Longitudinal slitting | Swinging razor blades Shear knives and razor blades | min 15 mm - (0.6 in) min 15 mm - (0.6 in) optional | |
| Flexo printing and varnishing unit | Repeat length on semi-rotary Running speed in full rotary mode | up to 350 mm - (13,8 in) up to 120 m/min - (393.7 ft/min) | |
| UV Curing System | Stepless Power | from 40 to 160 W/cm | |
| Semi-rotary die cutting unit with AGS® and IDS® | Flexible dies thickness with Air Gap System Dies adjusting range with Image Distortion System Max tool repeat (22.3"/25.5"/30") Max cutting lenght with IDS ® (22.3"/25.5"/30") Running speed with 22.3" (Z 179) Running speed with 25.5" (Z 204) Running speed with 30" (Z 240) | up to 2 mm - (5/64 in) +/- 20% of real cutting lenght (508/560/610) mm - (20/22/24) in (610/680/900) mm - (24/26.7/35.4) in up to 65 m/min - (213 ft/min) up to 75 m/min - (246 ft/min) optional up to 90 m/min - (295.3 ft/min) optional | |
| Digital unit Jet D-Screen | Digital printing system Native print resolution Print resolution Maximum print area Print setting area Relief height Image format | drop on demand 360 dpi up to 1440 dpi 320 mm - ( 12.6 in ) 20 to 350 mm – ( 5 to 13.8 in ) up to 800 micron PDF or JPG, BMP, TIFF | |
| Ink system | Ink storage Management system Varnish loading system Automatic washing system Type varnish | 5 L – ( 1.32 US Gal ) recirculation automatic included UV-Transparent | |
| Silk-screen unit | Max printing area Printing area adjustable Automatic inking pump system Max strokes/hour | (350 x 320) mm - (13.8 x 12.6) in from 20 to 350 mm - from 3/4 to 13.8 in optional 7800 | |
| UV stepless curing system | Standard, area 350 x 220 mm (13.8 x 8.7) in Advanced, area 350 x 320 mm (13.8 x 12.6) in Max UV curing repeat | from 52 to 200 W/cm from 29 to 250 W/cm - optional 220 mm - (8.7 in) or optional 320 mm - (12.6 in) | |
| Hot stamping & embossing unit | Standard printing area Advanced printing area Tonnage ( Stamping &/or Embossing ) Max strokes/hour | 350 x 310 mm - (13.8 x 12.2) in 350 x 356 mm - (13.8 x 14) in 38 Ton 18000 | |
| Flat bed die-cutting & embossing unit | Standard die-cutting/embossing area Advanced printing area Tonnage (Die cutting &/or Embossing ) Max strokes/hour | 350 x 310 mm - (13.8 x 12.2) in 350 x 356 mm - (13.8 x 14) in 38 Ton 18000 | |
| Laser die cutting unit | Working area Unlimited lifetime Laser source Single Laser power Double Laser power Cutting path speed Cutting spot size Running speed | up to 350 mm - (13.8 in) semi-sealed® CO2 self-refilling 350 W 350 W + 350 W up to 700 m/min - (2300 ft/min) 170 μm up to 180 m/min - (590 ft/min) | |
| Others | Further optionals may be available soon |
