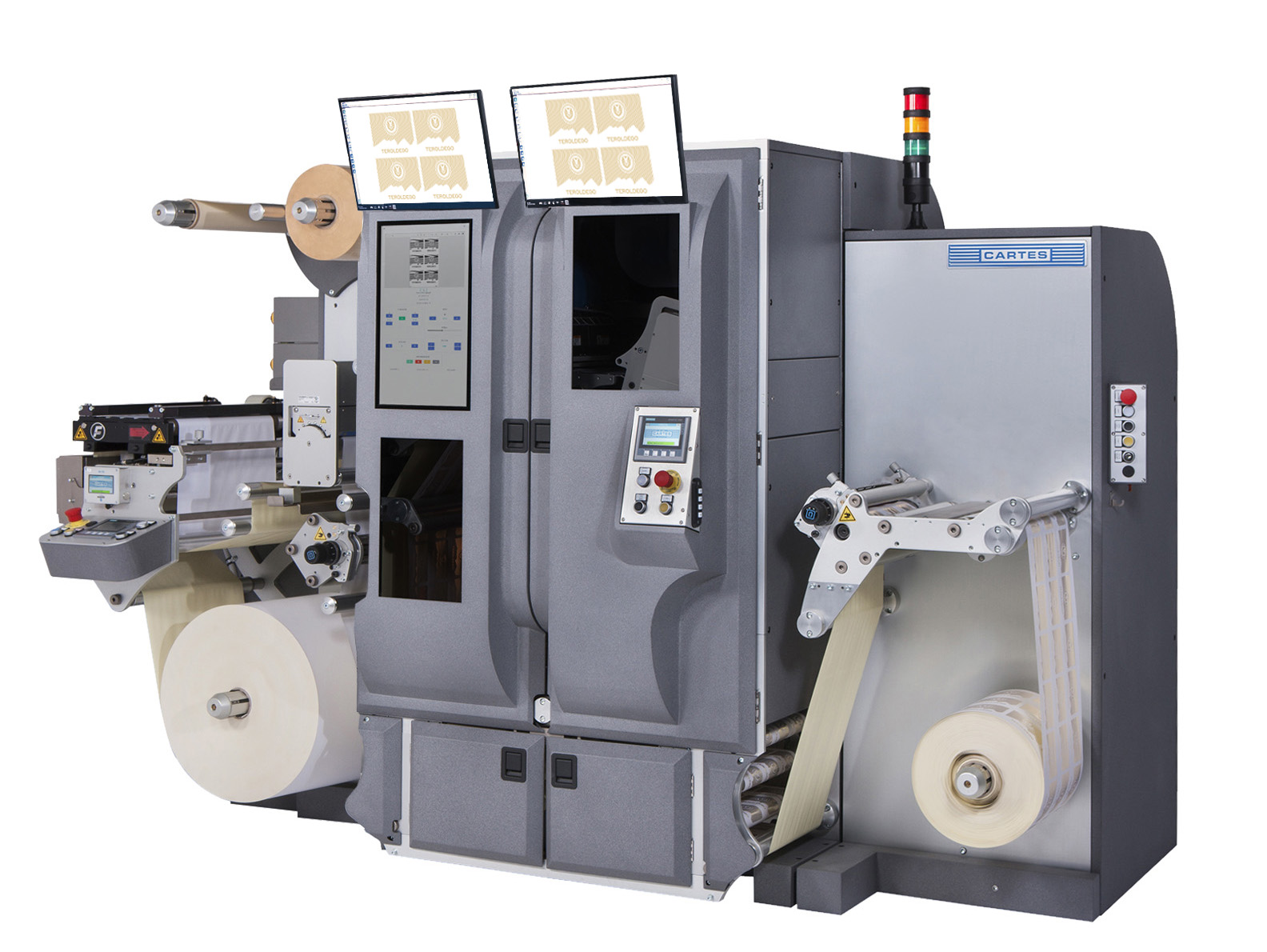

Modular label finishing machines in web width 360 mm
The GEMINI series machines represent the new frontier in Digital Converting: versatility, performance, waste reduction, the ability to save all processing parameters, reduced power consumption.
Configurable with the following units:
- Flexo printing and varnishing
- Digital embellishment (JET D-SCREEN)
- Semi-rotary die-cutting (CARTES PATENTED)
- Laser die-cutting (CARTES PATENTED)
Already “pioneers” in the application of Laser technology in the self-adhesive label market, thanks to the ILC® INVISIBLE LASER CUTTING system, it is possible to die-cut dark printed labels without typical and unsightly “white edge”.
Applications:
- Protective flexo coating
- Flexo printing
- Self-wound lamination
- UV lamination
- Cold foil
- Cast & Cure
- Digital finishing for creating high build effects, metal doming, high build varnish and Braille effects
- Semi-rotary die-cutting
- Laser die-cuting and special processings with automatic job changeover
| TECHNICAL DATA | |||
|---|---|---|---|
| General | Max web width Min web width Max unwinding & rewinding roll diameter Maximum matrix roll diameter Pneumatic contact stripping system Motorized stripping system | 360 mm - (14 in) 100 mm - (4 in) 600 mm - (23.6 in) or optional 800 mm - (31.5 in) 650 mm - (25.6 in) included optional | |
| Longitudinal slitting | Swinging razor blades Shear knives and razor blades | min 15 mm - (0.6 in) min 15 mm - (0.6 in) optional | |
| Flexo printing and varnishing unit | Repeat length on semi-rotary Running speed in full rotary mode | up to 350 mm - (13.8 in) up to 140 m/min - (459 feet/min) | |
| UV Curing System | Stepless Power | from 40 to 160 W/cm | |
| Semi-rotary die cutting unit with AGS® and IDS® | Flexible dies thickness with Air Gap System Dies adjusting range with Image Distortion System Max tool repeat (22.3"/25.5"/30") Running speed with 22.3" (Z 179) Running speed with 25.5" (Z 204) Running speed with 30" (Z 240) | up to 2 mm - (5/64 in) + 20% /- 10% of real cutting lenght optional (508/560/610) mm - (20/22/24) in up to 70 m/min - (229 ft/min) up to 80 m/min - (262 ft/min) optional up to 90 m/min - (295 ft/min) optional | |
| Laser die cutting unit | Working area Unlimited lifetime Laser source Single Laser power Double Laser power Cutting path speed Cutting spot size Running speed | up to 350 mm - (13.8 in) semi-sealed® CO2 self-refilling 350 Watt 350 W + 350 W up to 700 m/min - (2300 ft/min) 170 μm up to 140 m/min - (459 ft/min) | |
| Others | Further optionals may be available soon |
