The digital embellishment
CARTES introduces the new high quality standard of “Digital Embellishment” special effects with its exclusive technology, JET D-SCREEN

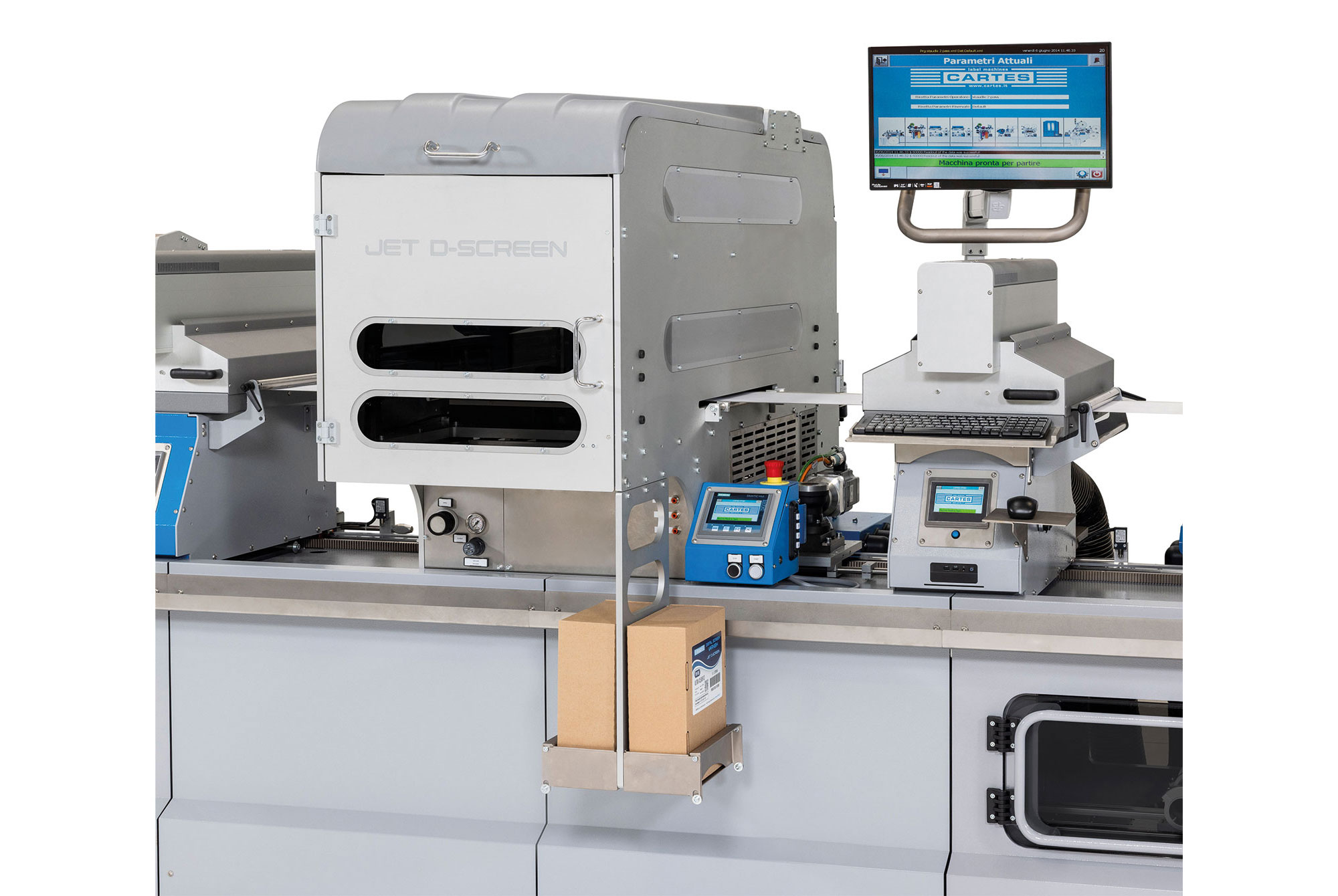

CARTES JET D-SCREEN digital unit allows you to create multi-layer effects such as spot coating, complex tactile raise effects and braille printing as well as very detailed foil and metallic doming transferring.
In just one step you can personalize and beautify labels, with no tooling costs, instantaneous start-up and no material waste.
The CARTES research and development department, taking advantage of its many years of experience in traditional screen printing, has developed an innovative finishing technology that uses its own system which allows depositing a thicker layer previously impossible to achieve with Ink Jet technologies.
The work of the operator has been simplified extensively, allowing the selection of options from already predefined settings as well as the choice of the material to be used, thus achieving immediate production in the JDS unit without waste.
Materials that are printed with the JDS system do not need to be varnished or treated before, these processes may distort the “texture” of the material.
The printing polymerization device consists of a hybrid LED/UV drying system that allows any type of material to be processed, even those most sensitive to temperature.
The JET D-SCREEN unit for digital Embellishment is the latest innovation in the wide range of CARTES developments. In a single step, it allows you to personalize and beautify labels, without tooling costs, with immediate start-up and without any waste of materials.
Modular, just as all CARTES technologies, it adapts to the requirements of Industry 4.0
Features
- No tools required
- Immediate job change
- Material & time savings during start up
- Automatic print-distortion & correcting system
- Immediate prior calculation of the necessary varnish contribution in the quote phase
- CARTES own technology
- 100% suitable for natural paper texture face stock
- No special treatment are needed for over printing
- Low production costs
Accessories available

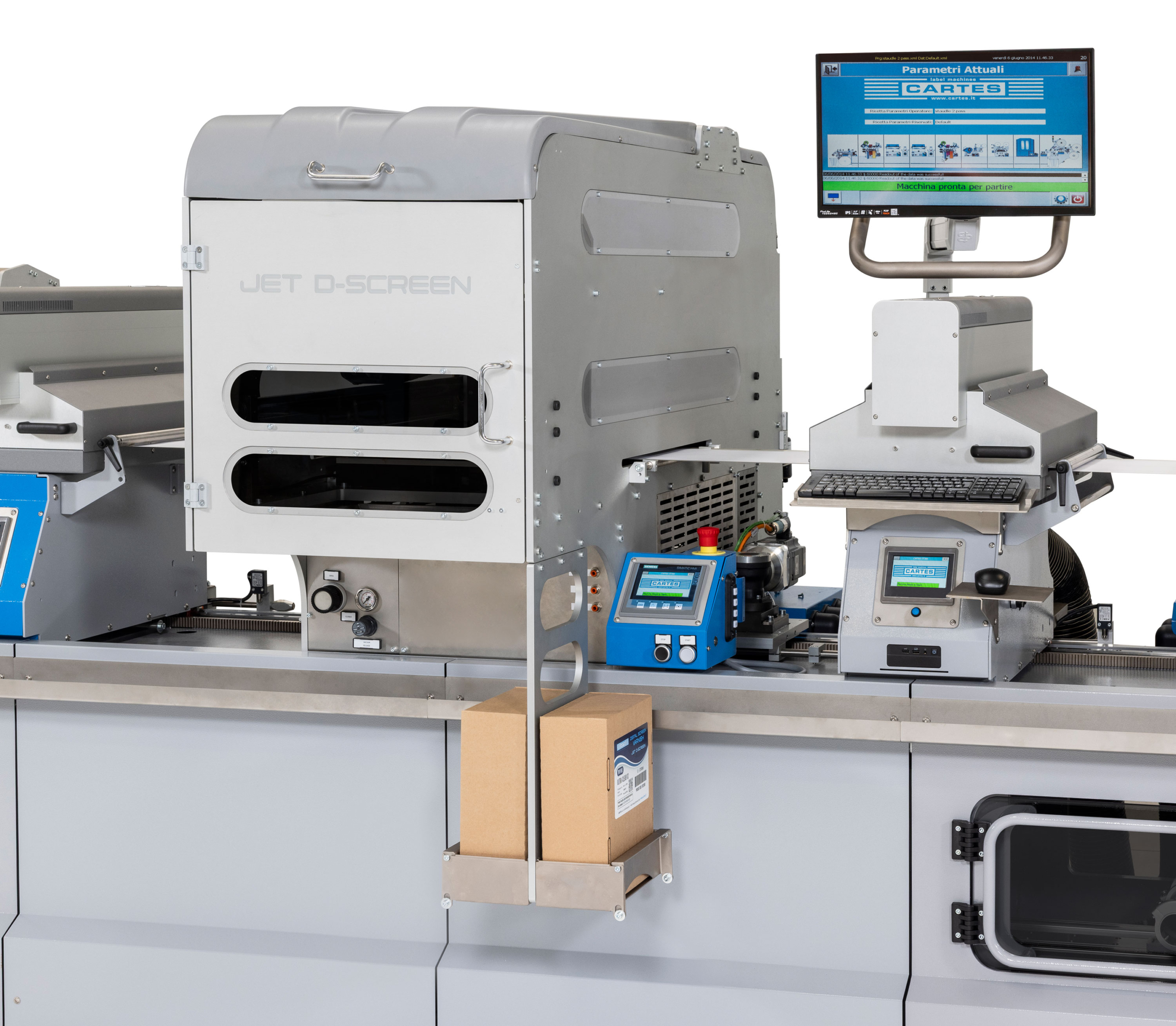

- DUAL JET D-SCREEN UNIT: dual printing bar.
- JDS INK ESTIMATION: varnish consumption counter.
- JDS DRAW EDITOR: integrated software suite that permits design editing directly on the machine interface.
- VARIABLE DATA PRINTING MANAGEMENT: full variable data setting (text, graphics, image) for both spot varnish and metallic doming.

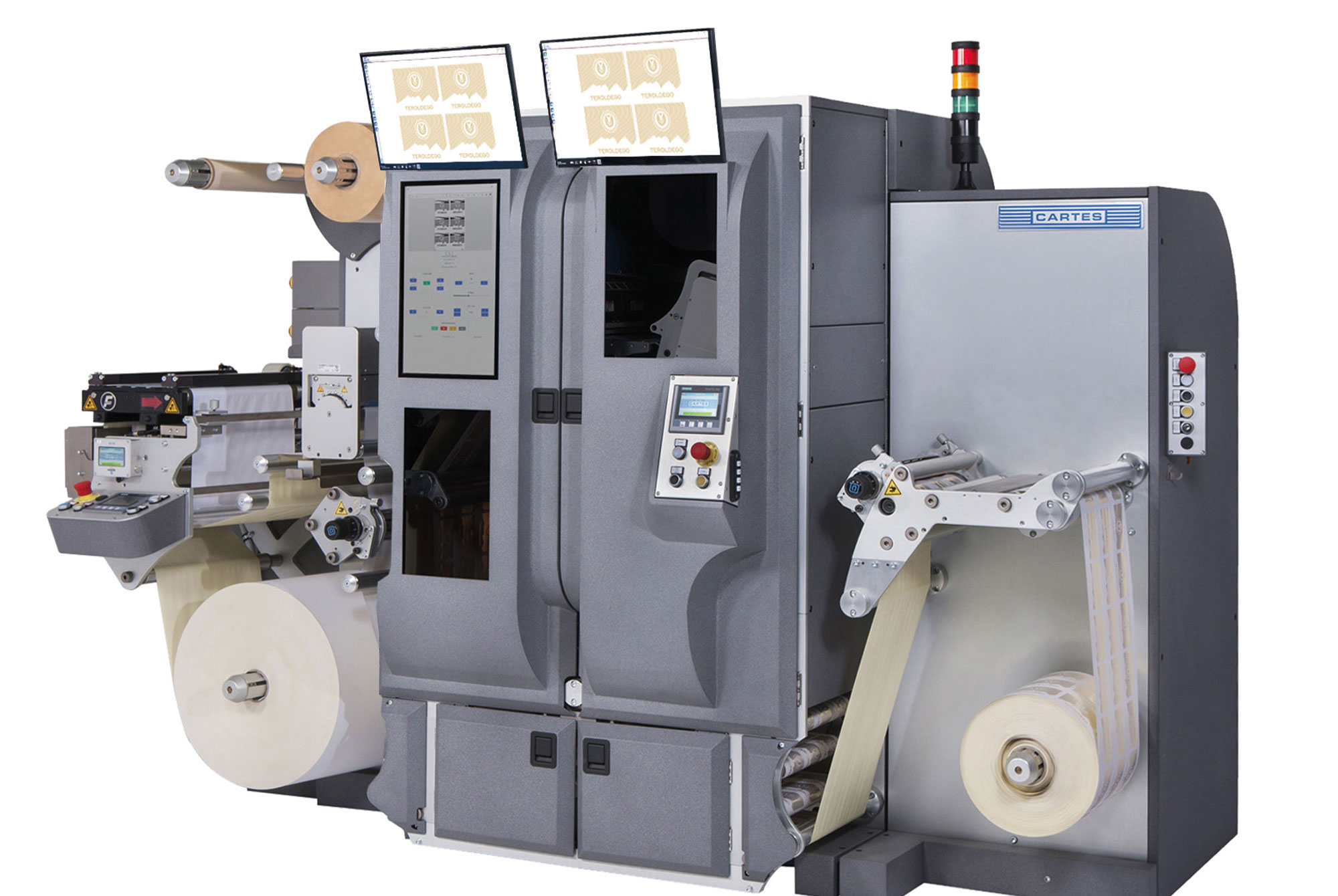

- IDS-J AUTOMATIC DISTORTION CORRECTING SYSTEM (for GEMINI series): automatic print-distortion detection system.
| Technical Data | |||
|---|---|---|---|
| Printing system | Digital printing system Native print resolution Print resolution Maximum print area Print setting area Relief height for GT360 Relief height for GEMINI Image format | Drop on Demand 360 or 720 dpi up to 2160 dpi 320 mm - ( 12.6 in ) 20 to 350 mm – (5 to 13.8 in) up to 800 micron over 200 micron PDF or JPG, BMP, TIFF | |
| Ink system | Container Management system Varnish loading system Type varnish | 5 L – ( 1.32 US Gal ) Recirculation automatic UV-Transparent |
